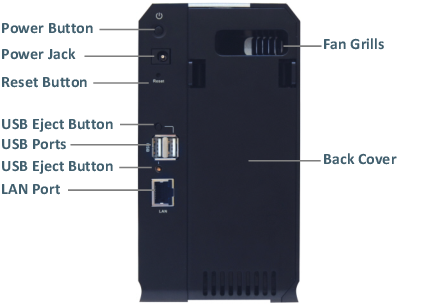

The C200 Rear Panel
Network and power connections are made via the C200's rear panel.
The C200 rear panel contains the following elements:
Element | Description |
|---|---|
Power Button | The On/Off switch. |
Power Jack | A power jack used for supplying power to the C200. Connect the power supply cable provided in the C200 package to this jack. |
Reset Button | A button used for restarting the C200 or resetting it to its default settings. |
USB Ports | Two USB 2.0 ports used for connecting USB drives. Note that you can connect more than two USB drives, by connecting a powered USB hub. Be sure to use a powered hub, in order to avoid exceeding the power capacity of the USB ports. |
USB Eject 1/USB Eject 2 | Buttons used to eject the USB drives. Each button ejects the USB drive connected to the port that is adjacent to the button. After ejecting a USB drive, wait until the USB LED turns off. You can then safely remove the USB drive from the system. |
LAN Port | An Ethernet port used for connecting the C200 to your Ethernet LAN switch or router using the Ethernet cable provided in the C200 package. |
Fan Grille | Do not cover or obstruct the fan grille as it is needed for proper cooling of your gateway. |
Back Cover | The back cover opens to allow insertion of up to two SATA 3.5" hard drives. |
