Creating a Portal Instance
You can install the CTERA Portal on KVM via the OpenStack console or another console. The following instructions describe how to install a CTERA Portal using the OpenStack console.
To install the CTERA Portal Server in OpenStack:

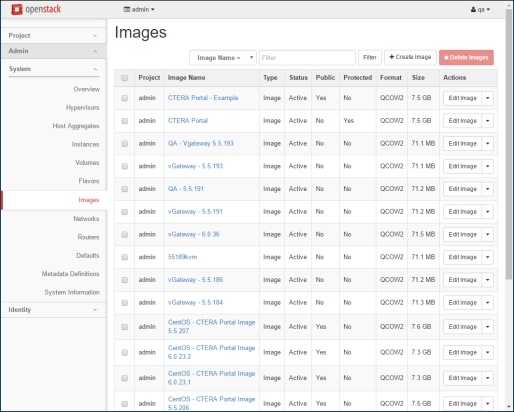

1 Log in to the OpenStack console and access Admin > Images.
2 Click Create Image.

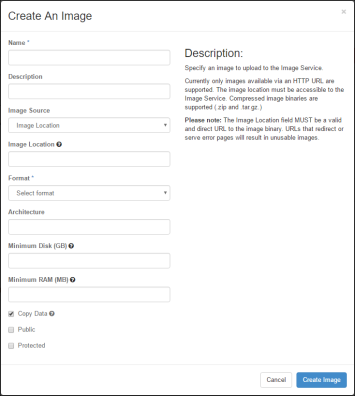

The Create An Image screen is displayed.
3 Specify the details for the image.
Name – A unique name to identify the image.
Description – An optional description of the image.
Image Source – Select Image File.
Image File – Browse to the OpenStack image received from CTERA.
Format – Select QCOW2 - QEMU Emulator.
Architecture – Leave blank.
Minimum Disk – The minimum disk requirement is 110GB.
Minimum RAM – The minimum RAM requirement is 8096MB. For production CTERA recommends 16192MB.
You can leave both Public and Protected checkboxes with their default values.
4 Click Create Image.
The image is created. This can take a few minutes.
5 Access Project > Compute > Instances.
6 Click Launch Instance.

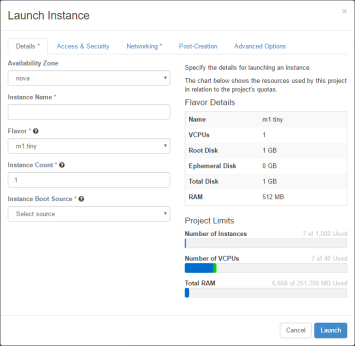

The Launch Instance screen is displayed.
7 Specify the details for the image.
Availability Zone – Select the availability zone for the instance.
Instance Name – A unique name for the instance.
Flavor – Select a flavor with at least 8GB RAM and 2 CPUs, such as m2.medium. For production CTERA recommends 16GB RAM and 4 CPUs.
Instance Count – Leave the default value, 1.
Instance Boot Source – Select Boot from image.
Image Name – Select the image you created for the CTERA Portal.

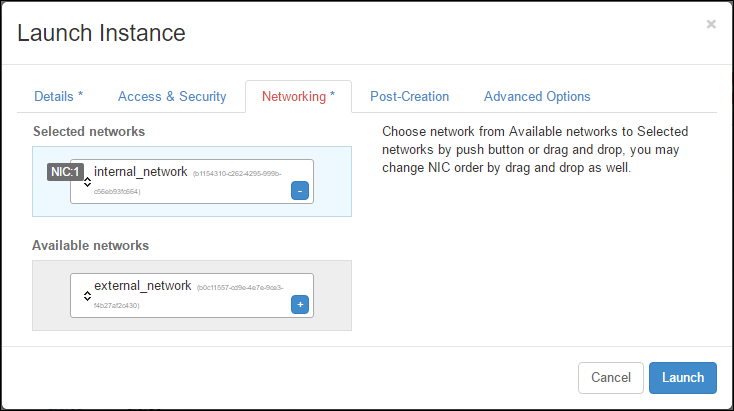

8 Click the Network tab and drag the internal_network option to Selected networks.
9 Click Launch.

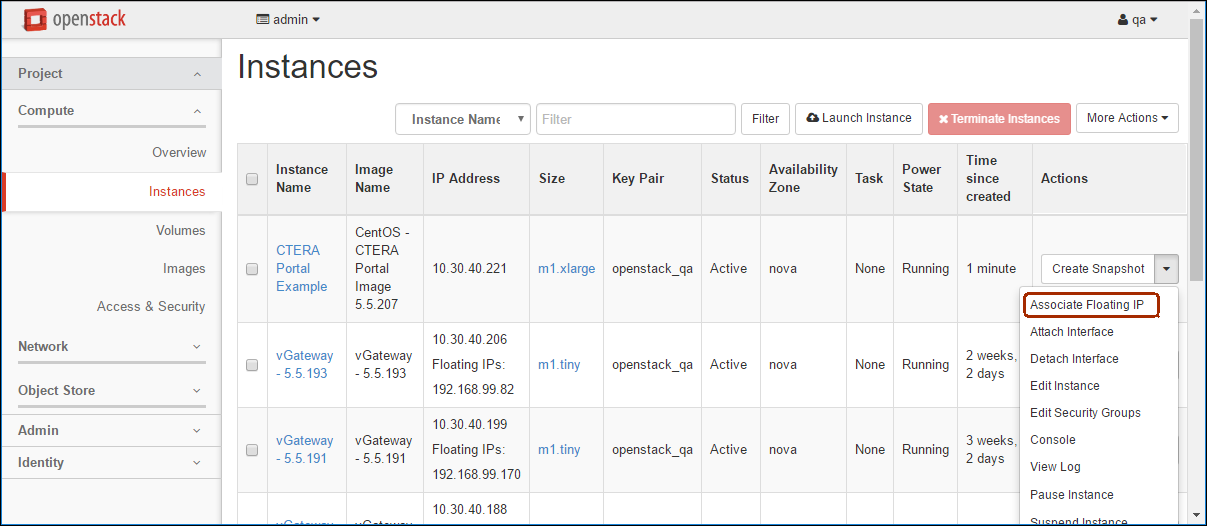

10 For the portal instance, under Actions select Associate Floating IP.

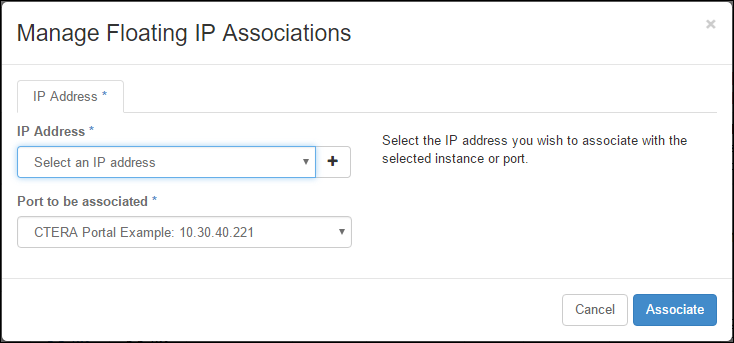

The Manage Floating IP Associations dialog is displayed.
11 Select an IP address and click Associate.

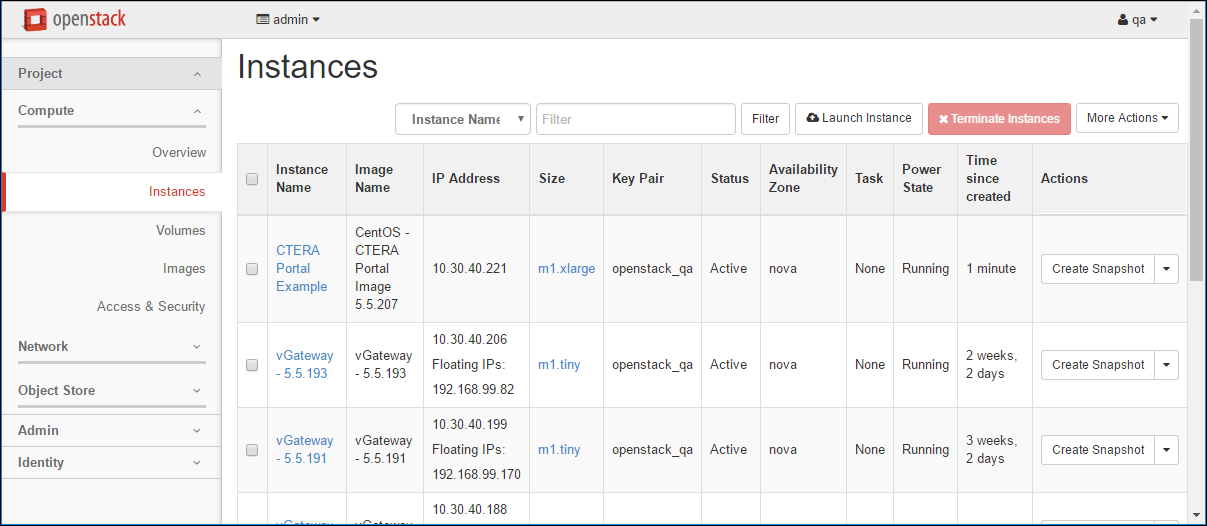

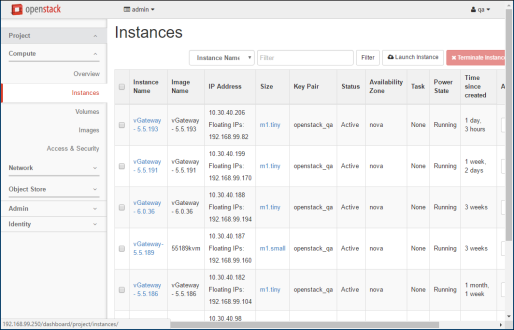

Refreshing the Instances screen displays the portal with the selected IP.
12 Access Project > Compute > Volumes.
13 Click Create Volume.
The Create Volume screen is displayed.
14 Specify the details for the image.
Volume Name – A unique name to identify the volume.
Description – An optional description of the volume.
Volume Source – Select No source, empty volume.
Type – Select iscsi.
Size – The minimum disk requirement is 110GB. When deploying a main database server or a catalog node to production, it is recommended to attach a disk sized 2% of the overall cloud storage you intend to allocate for the service. Prior to going to production, contact CTERA Support to evaluate whether the attached drive's performance meets CTERA's main database and catalog node performance requirements.
Availability Zone – Select the same availability zone used for the image.
15 Click Create Volume.
The volume is created. This can take a few minutes.

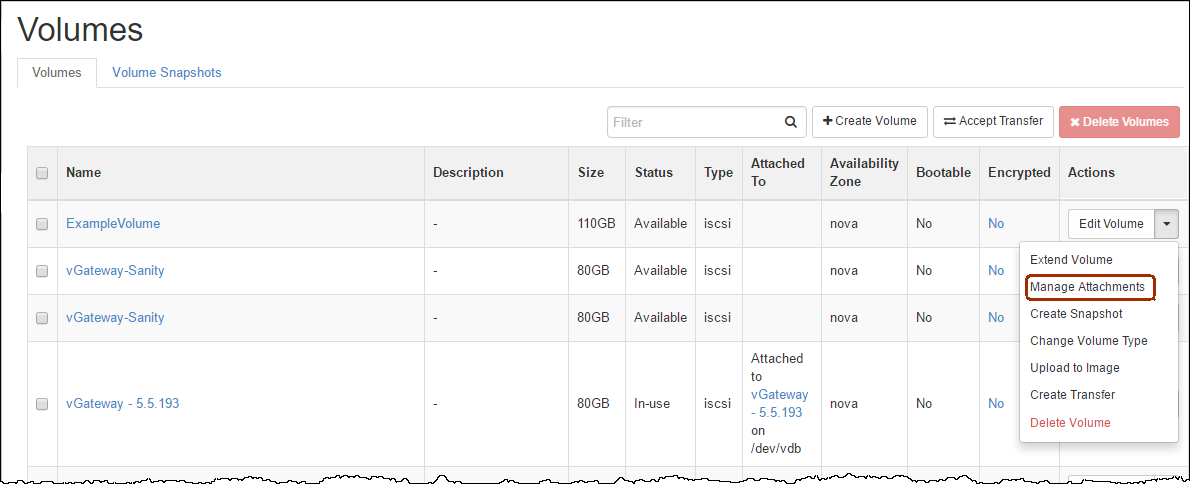

16 For the new volume, under Actions select Manage Attachments.
The Manage Volume Attachments dialog is displayed.
17 Select the portal instance and click Attach Volume.

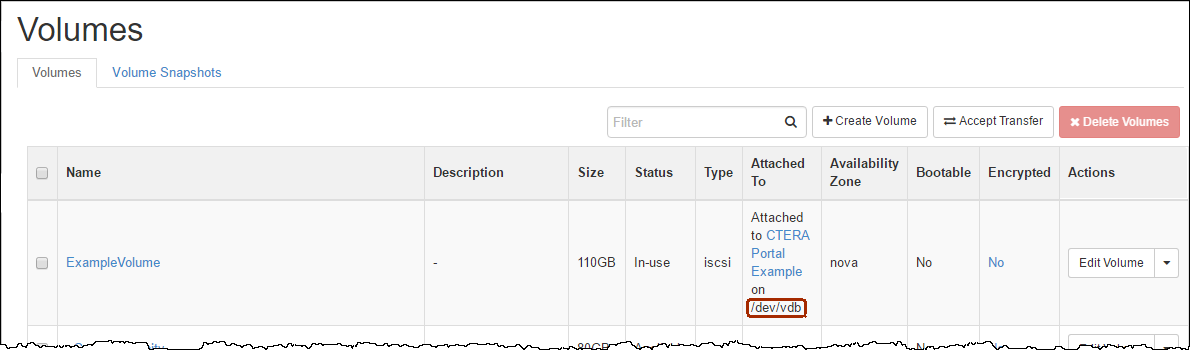

18 Note the location of the storage.
Access the new portal machine, using SSH, with the floating IP.
