Viewing the Activity Monitor
The Activity Monitor provides an overview of the gateway's recent activity, including:
*The disk read rate in KBps (kilobytes per second)
*The disk write rate in KBps (kilobytes per second)
*The percentage of CPU in use
*The percentage of memory in use
*A list of active user sessions
*Details about the top twenty processes running on the appliance

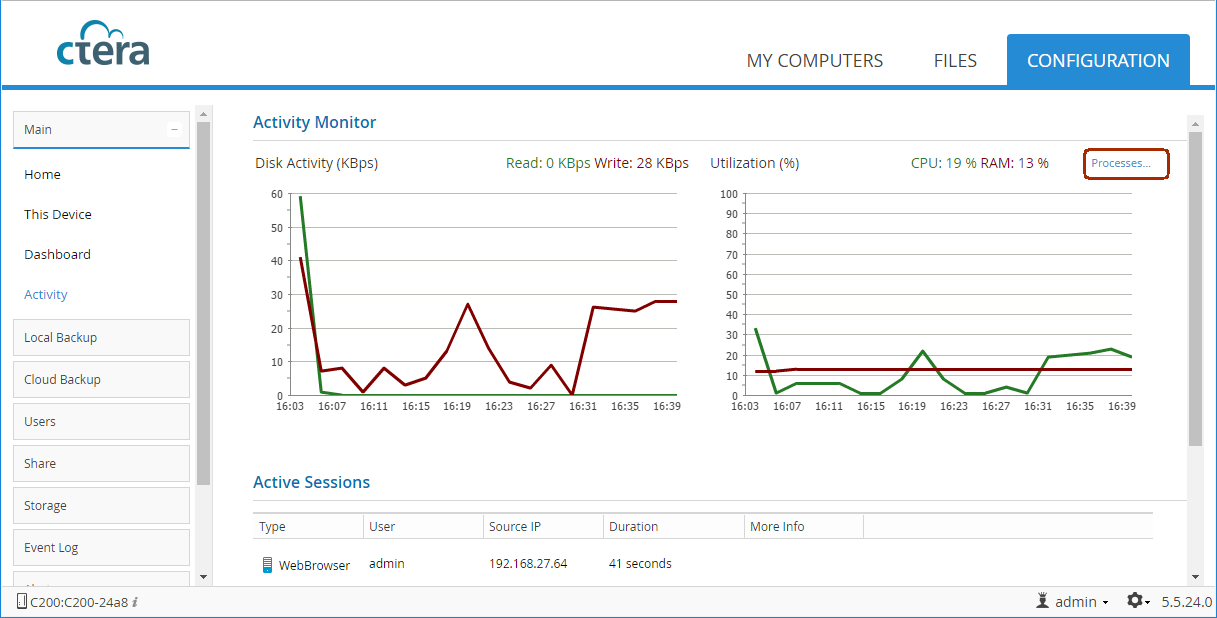

To view the Activity Monitor, in the CONFIGURATION tab, select Main > Activity in the navigation pane.
Under Active Sessions, the following information is displayed:
Type – The session type:
*SMB (Windows File Sharing)
*CTERA Agent
*Web Browser
User – The user connected to the gateway.
Source IP – The IP address from which the user connected to the gateway.
Duration – The amount of time that the user has been connected to the gateway.
More Info – Additional information about the session.
Note: The data is refreshed automatically every few seconds.

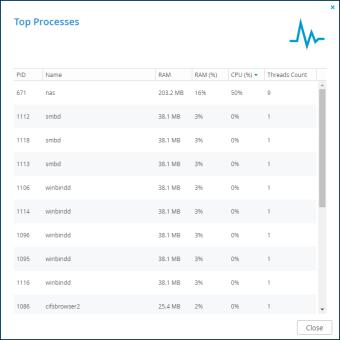

Click Processes... to access the Top Processes window. Top Processes provides information about the top twenty processes currently running on the gateway; data about the processes, and statistics about memory and processor performance.
Where:
PID – The process identifier.
Name – The process name.
RAM – The percentage of the RAM used by this process.
CPU – The percentage of CPU used by this process.
Threads Count – The number of threads spawned by the process.
