Upload Device Firmware to Portal Repository

Upload the latest firmware version for the CTERA Cloud Gateway and CTERA Agent to the CTERA Portal firmware repository, and mark it as the current version.

To upload each firmware image and mark it as current

  1. Log into the CTERA Portal Global Administration control panel.
  2. In the navigation pane, click Main > Firmware Repository.

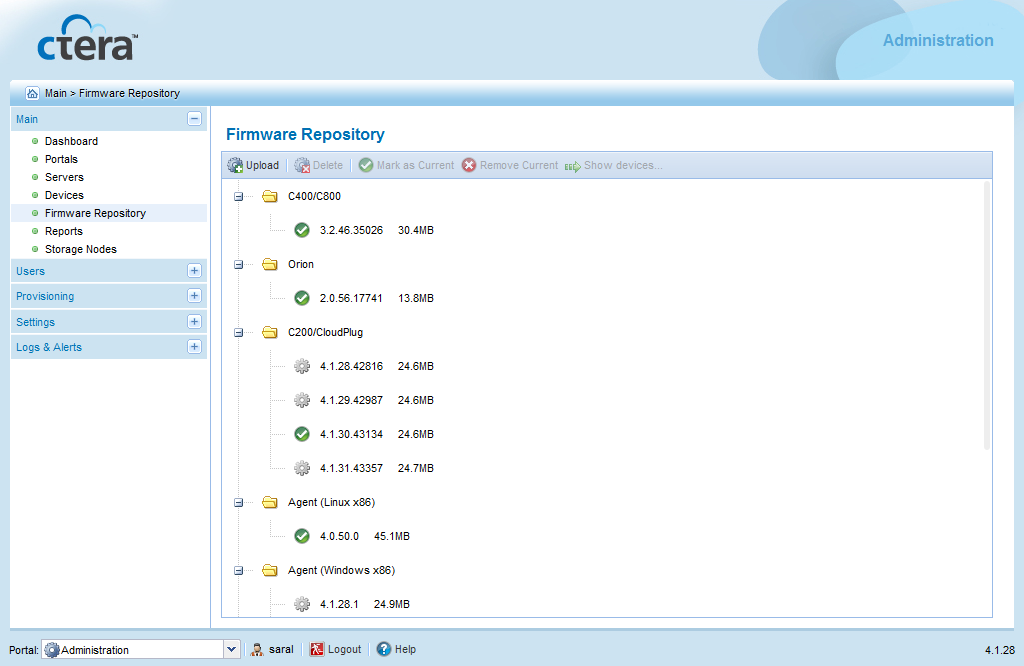

    The Main > Firmware Repository page appears, displaying all firmware images.

    Linked Picture File

  3. Click Upload.

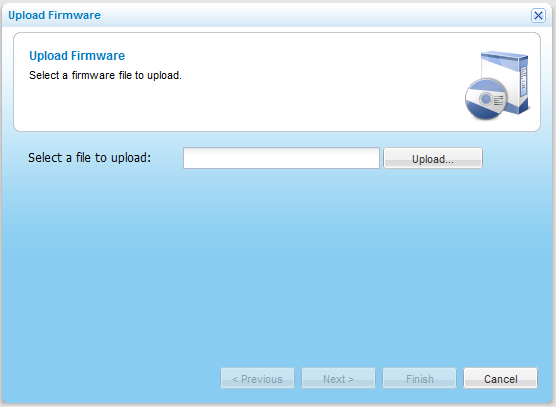

    The Upload Firmware Wizard opens displaying the Upload Firmware dialog box.

    Linked Picture File

  4. Click Upload and browse to the latest version of the firmware (a *.tgz file.)

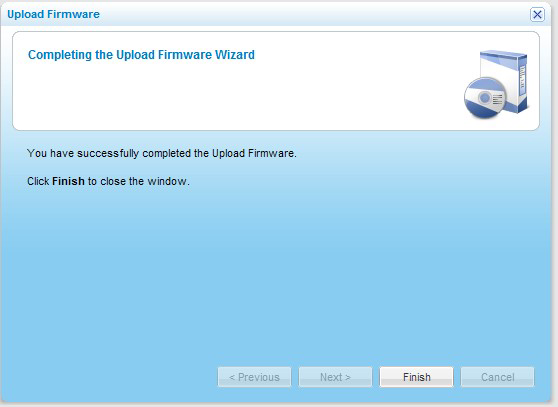

    The firmware image is uploaded to the relevant device platform category. At the end of the upload process, the Completing the Upload Firmware Wizard screen appears.

    Linked Picture File

  5. Click Finish.
  6. Select the row of the firmware image you just installed.
  7. Click Mark as Current.

    The selected firmware image becomes the current firmware image and is marked with the Icon - Default.png icon. All devices of the relevant device platform that are set to automatically download firmware images will now download this firmware image.
